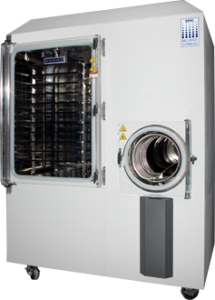

Epic® Series Freeze Dryers

Freeze Dryers

Pilot Lyophilizer

The EPIC® Series Lyophilizer is the perfect unit for small scale production. It offers up to 30 sq ft of shelf area with a condensing rate of 40 Liters in 24 hours. With these specifications the price and performance of the Epic Series beats anything in its class. Standard features include PC/PLC controls for data collection, self-testing features (automatic freeze-drying, defrost, and system and leak rate testing. Additionally, remote connection is available to allow for a simple troubleshooting and customer services with customer approval

In addition to our standard features , advanced system options include: FreezeBooster® Controlled Nucleation, Auto-Dry™ Protocol Optimization, AccuFlux™ and CIP. This combination provides the ideal platform for simplified and optimized protocol development.

We have addressed common application issues in our design with features such as; more accurate vacuum sensors, no rubber hoses, no vapor flow choke points, superior shelf temperature uniformity, reduced shelf temperature transition times, increased stoppering pressure, and more to ensure that the equipment is not a limit to your freeze drying needs.

  • 10 shelf pull down from +20 to –40C in less than 45 minutes
  • Vacuum pull down to 100 mT in less than 25 minutes
  • Vacuum leak rate less than 30 mT per hour
  • Vacuum level 10 mT in clean dry system (-85C)
  • PC/PLC with ethernet and remote Internet connectivity
  • Manual and automatic operating modes
  • Graphic and numeric data collection
  • Automatic system and leak rate testing
  • Options for Protocol Optimization and Controlled Nucleation
  • Up to 30 sq. ft. of shelf area
  • Large shelves for more product capacity – 18″ x 24″
  • Increased stoppering pressure for 2ml vials
  • 316L on all wetted parts
  • 8″ vapor port standard
  • Exposed coil condenser for maximum efficiency
  • Hot gas defrost
  • High reliability scroll compressors
  • Water Cooled
  • Oversized refrigeration components for high reliability
  • CFC-Free, non-proprietary refrigerants
  • Pirani vacuum sensor standard
  • Vacuum control standard
  • Gas backfill standard
  • 525LPM corrosion resistant vacuum pump
  • Sanitary style fittings on all sensor and vacuum ports
  • Built-in validation port – sanitary fitting

EPIC Series

Pilot Freeze-Dryer/ Lyophilizer

  • Tissue Bank
  • R&D/Small Scale Production
  • Diagnostics
  • Well Plates
  • Vials
  • Bulk Applications / Trays

Download our brochure for the EPIC Series
